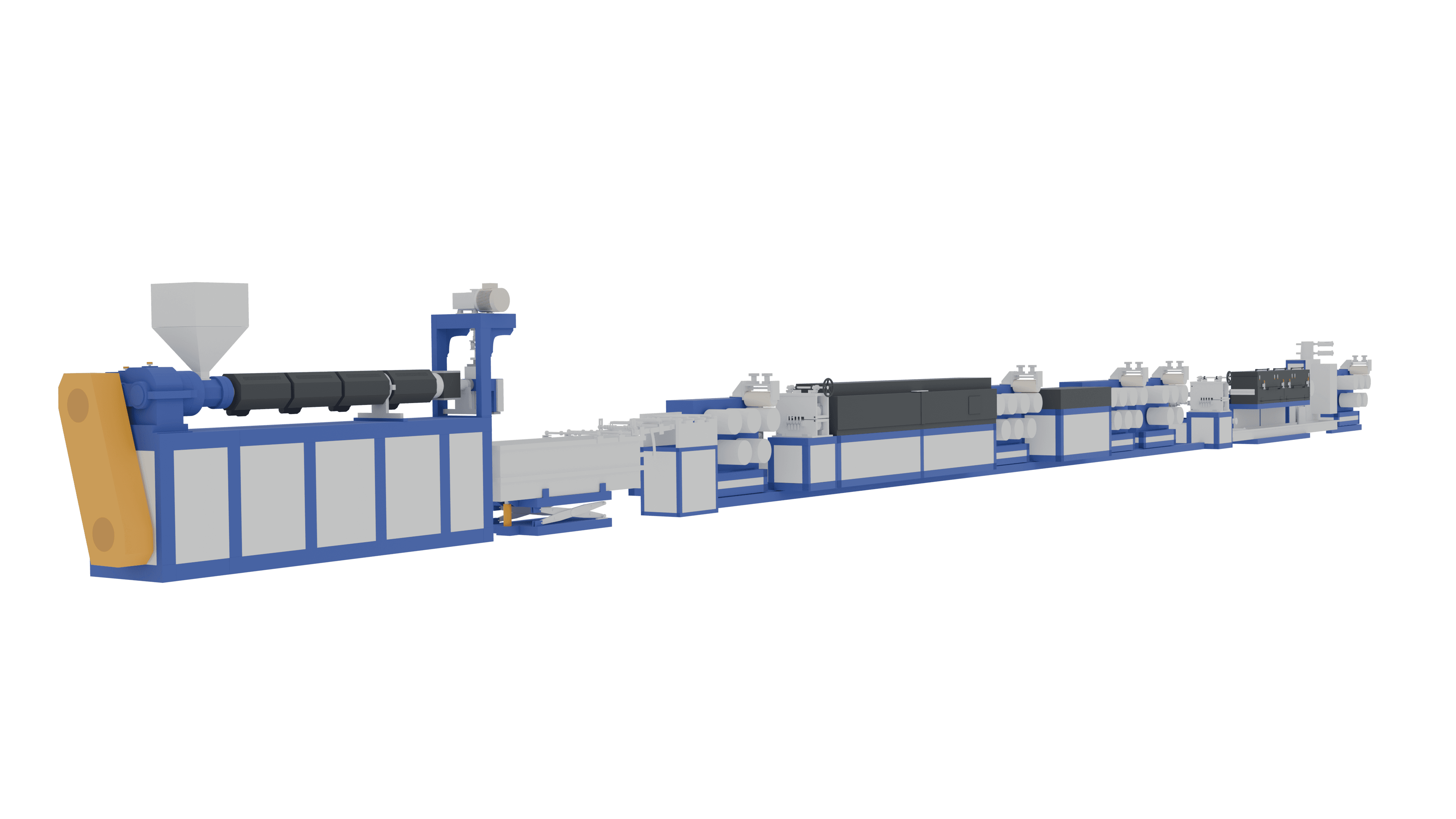

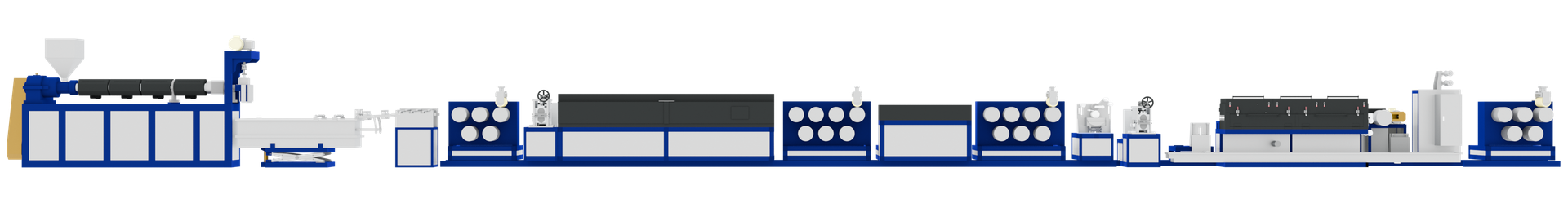

PET Strap Extrusion Line
The PET Strap Extrusion Line is a production system for manufacturing high-strength PET straps used in heavy-load bundling and steel strap replacement.
Strap width
Supports PET strap widths from 9 to 32 mm for a wide range of high-strength strapping specifications.
Capacity
Delivers up to 8.8 tons per day for stable, large-scale production of high-strength PET strap.
Applications
Suited for heavy-load packaging such as timber, metal, construction materials, and other demanding cargo.
Turnkey solution
Covers line design, equipment manufacturing, installation, commissioning, and operator training.

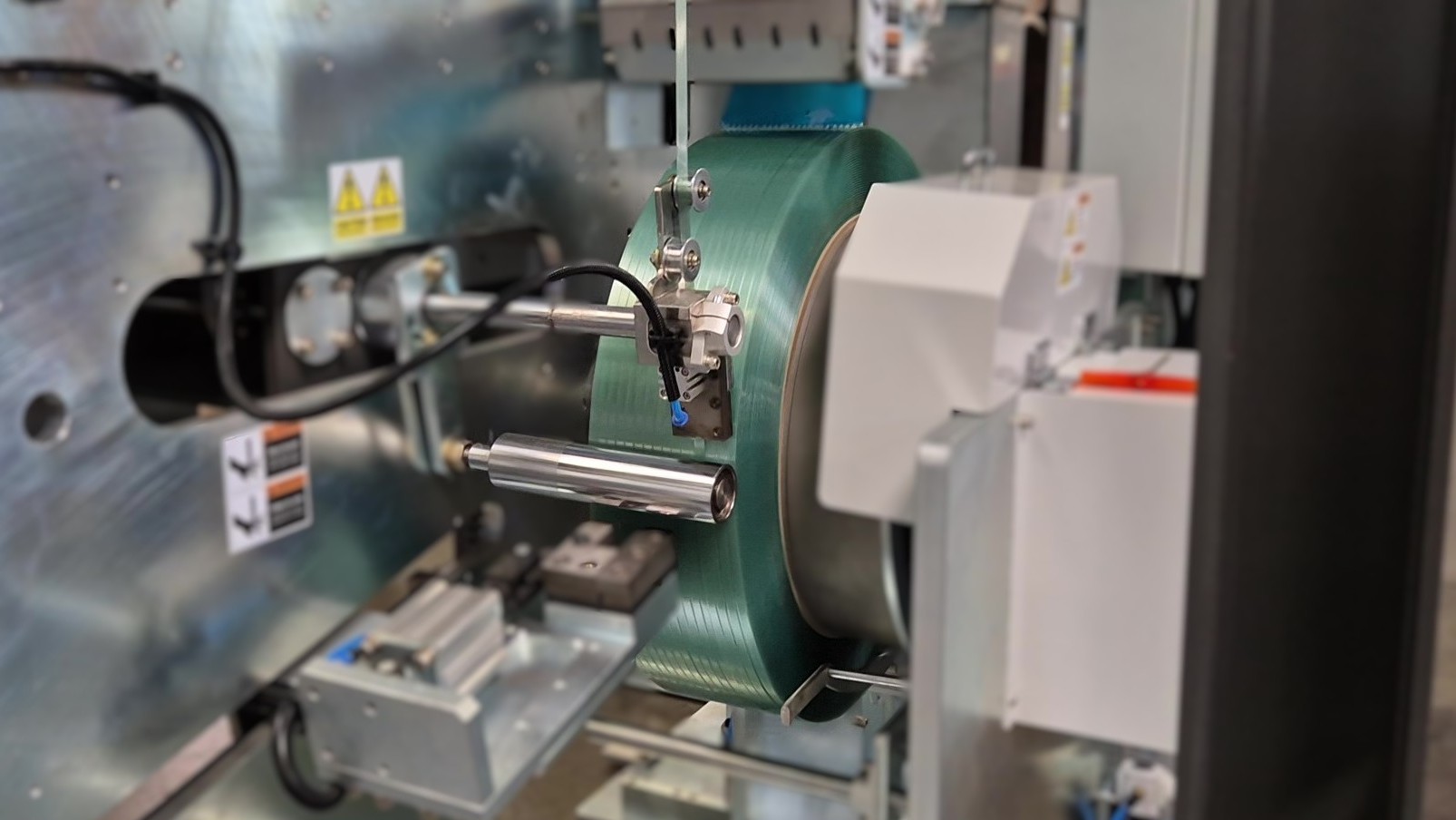

Integrated in-house winders
Connects with DAESUNG EXT automatic and semi-automatic winders to improve winding quality and line efficiency.
Energy efficiency
An energy-conscious system configuration strengthens cost competitiveness for high-value strap production.
Model specs
Model specifications
| Model | Screw Dia. (mm) | Capacity (kg/hr) | Strap No. | Strap size (mm) |
|---|---|---|---|---|
| DS-PETS 90 | 90 | 270 | 1 - 4 | 9 - 32 |
| DS-PETS 100 | 100 | 370 | 2 - 4 | 9 - 32 |
 | ||||
COMPARISON
Winder Comparison
Compare PET strap fully automatic and semi-automatic winders by automation features, roll wrapping, and applicable core specifications.
| Feature | Fully Automatic Winder | Semi-Automatic Winder |
|---|---|---|
| Product Image |  |  |
| Automatic Winding | Yes | Yes |
| Automatic Bobbin Loading | Yes | No |
| Automatic Roll Ejection | Yes | No |
| Automatic End Cutting | Yes | No |
| Automatic Roll Wrapping | Yes | No |
| Interchangeable Bobbin Holder | No | Yes |
| Applicable Strap Width | 9 - 32 mm | 9 - 32 mm |
| Applicable Core Diameter | 200 - 406 mm | 200 - 406 mm |
| Applicable Core Width | 150 - 300 mm | 150 - 300 mm |
Inquiries
Product Inquiries & Custom Solutions
Need product specifications, pricing, or guidance on custom-built equipment for your production line?
